Flux Productions, 10' x 20'—10' x 10' Backwall CAD

This client wanted to create a display to be used with their Ultimate Fighting events. The back wall is convertible from 20' to 10' in two variations. The tube structure in front would have client supplied fencing tied to it during live display, acting as a backdrop for fan photos and selfies.

10' x 20' Backwall Display CAD: T/F/L view.
10' x 20' Backwall Display CAD: T/F/R view.

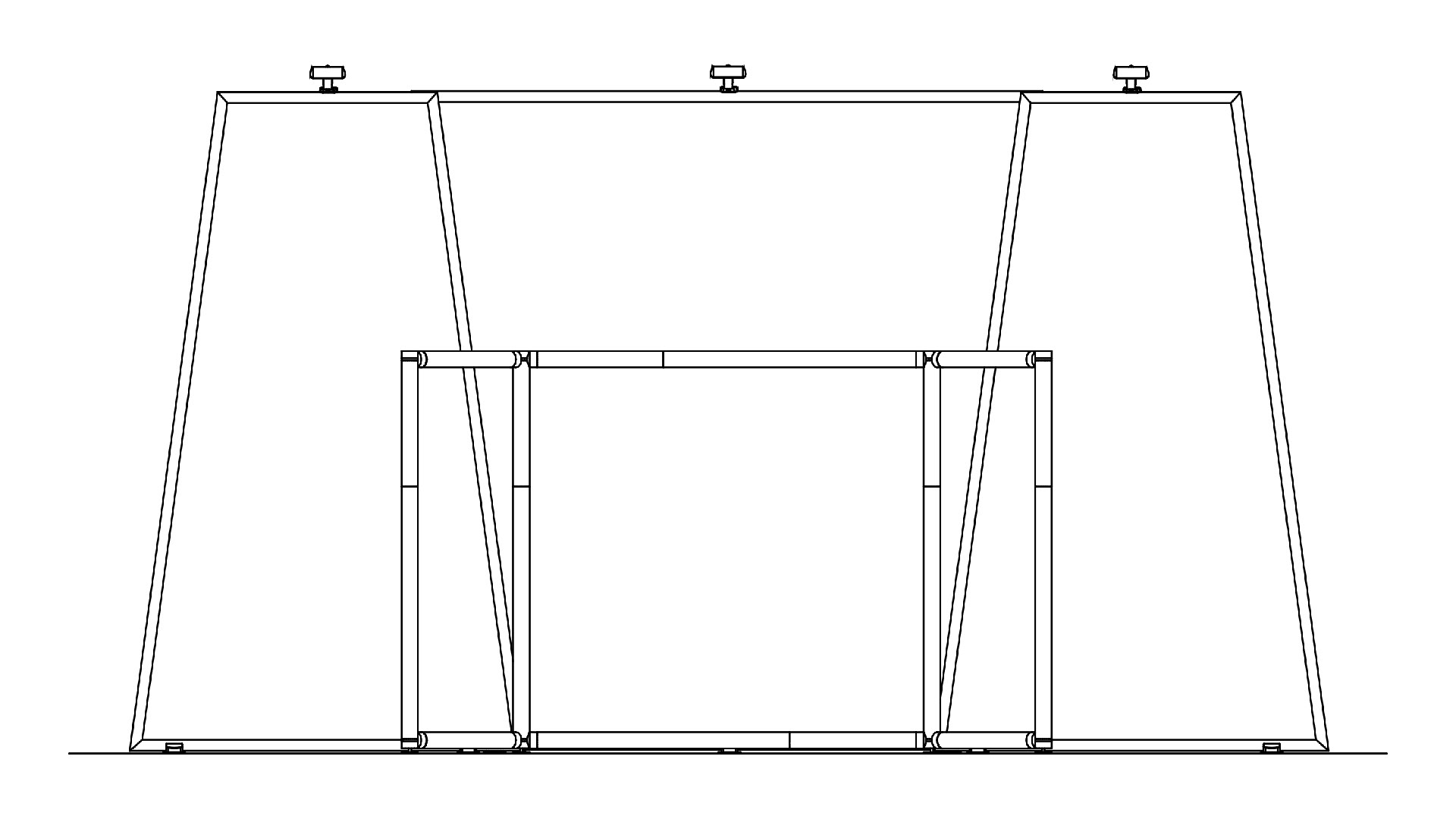

10' x 20' Backwall Display CAD: Front view.
10' x 20' Backwall Display CAD: Side view.
10' x 20' Backwall Display CAD: Back view.
10' x 20' Backwall Display CAD: Top view.
10' x 10' Backwall Display CAD: Alternate view.
10' x 10' Backwall Display CAD: Alternate view.
10' x 20'—10' x 10' Backwall Display CAD: Structure view.
